Function-Fiber Qualitative Analysis:

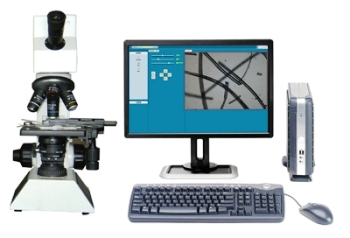

YG002C fiber fineness analyzer is a man-machine interactive fiber diameter measurement analyzer. The instrument connects optical microscope with computer through high resolution industrial camera, and completes fiber diameter measurement by professional analysis software.

It can be used to identify the longitudinal and cross sections of animal fibers, chemical fibers, cotton and linen fibers.

Functional two-fiber diameter measurement:

It can be used to measure the diameter of animal fibers, chemical fibers, cotton and hemp fibers. The measuring speed is fast, easy to operate, and the human error is reduced. The measuring range of the instrument is 1-2000 um. The data and reports are output by EXCEL. The format and statistics of the reports can be changed according to the user's requirements (standards need to be provided).

Functional three-diameter automatic measurement:

Data correction function, providing automatic diameter measurement accessories (need to manually adjust and replace the field of view);

Data and reports are output by EXCEL. The format and statistics of reports can be changed according to user's requirements (standards need to be provided).

Function-Fiber Qualitative Analysis:

FZ/T 01057.3-2007 Textile Fiber Identification Experiment Method Part III Microscopic Method

AATCC 20-2008 Qualitative Analysis of Fibers

Functional two-fiber diameter measurement:

GB/T 10685-2007 "Wool Fiber Diameter Test Method-mdash; Projection Microscope Method"

ISO 137-1975 Wool & mdash; Fiber Diameter Measurement & mdash; Projection Microscope Method;

IWTO-8-97 Method for Measuring Wool Fiber Diameter Distribution and Myelinization Percentage of Wool and Other Animal Fibers by Microscopic Projector.

GB/T 3364-1982 Testing Method for Diameter and Equivalent Diameter of Carbon Fiber (Microscopic Method);

Functional three-diameter automatic measurement:

GB/T 20732-2006 Fiber Diameter Optical Analyser;

IWTO-47-00 "Regulations on the Method of Measuring the Average Diameter and Distribution of Wool Fiber by Optical Fiber Diameter Analyser";

Provide certificates of measurement:

The test certificate provided by the Chinese Academy of Metrology Sciences;

Testing Certificate of China National Textile Measurement Station;

1 MacAudi Microscope

1 Panasonic Camera

1 Set of Testing Software

1 cartridge of slide

1 cover slide 1 box

Self-made slicer

Computer printer self-matching
