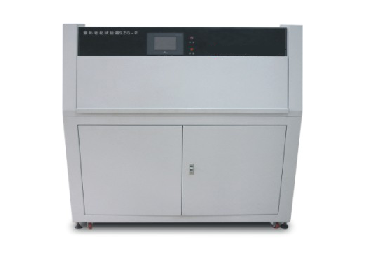

Used for anti-ultraviolet aging test of various materials. Ultraviolet lamp was used to simulate the effect of sunshine, condensation moisture was used to simulate rainwater and dew, and the materials to be tested were placed at a certain temperature in the alternating cycle of light and moisture.

ASTM G154 -06 Cycle 1 (38750;"26448;"

ASTM D4329 -05 Cycle A (226099;)

ASTM D4587 -05 Cycle 4 (28034;)

AATCC 186 -2006 --32442;- 32455;- 32784;- 27668;- 20505;- 32043;- 28287;- 24577;- 26333d;-261944;

GB /T 16422.3 -1997'32043;'32769;' 27979;'357977;

GB /T 14522 -93 -93 -26800;- 19994;- 20135;-226093301428034;- 27233;- 330144448;- 27668;- 20505797;- 39564;-

ISO4892 -3:1994 -22609;- 33014;- 39564;- 23460;- 2830426292;- 38706;- 357979;-39564;-

JTG E50 T1164 -31561;

"27880; 28385;" 36275;"36848;" 26631;"20934;20294;" 19981;"38480;" 36848;"26631;"20934;

1. Dimension of studio: 450 *1170 *500 (depth *width *height)mm

2. Shape size: 500 x 1380 x 1480 (deep x wide x high) mm

3. Temperature range: RT+10 ~70 ~

4. Temperature uniformity: +3 C

5. Humidity range: > 95% R. H

6. Parallel central distance of lamp tube: 70mm

7. Distance between test sample and lamp tube surface: 50+2 mm

8. Light Source: UVA or UVB

9. Lamp length: 1200mm

10. Lamp power: 40W

11. Ultraviolet lamp wavelength range: 315-400 nm or 280-315 NM

12. Simulated Condensation: Condensation System Time Adjustable

13. Ultraviolet exposure and simulated condensation time range: 0-99 hours

14. Standard test piece: 75 × 150 mm (21 samples can be placed in the whole machine at one time)

15. Power: 3.5KW

16. Power supply voltage: AC380V 50Hz

[Box structure]

1. The box body is made of NC equipment, advanced technology, smooth lines and elegant appearance.

2. The outer shell of the box is sprayed with 1.2mm thick cold-rolled steel plate; the inner liner is SUS304 high-grade stainless steel plate and the lid of the box

3. Spray treatment for SUS304 stainless steel.

4. The air duct in the box adopts a single-cycle system with an imported axial-flow fan, which improves the air flow rate, heating capacity and greatly improves the performance.

Temperature Uniformity of Test Box

5. Lamp tube: imported ultraviolet lamp tube, 8 in two rows, 40W/lamp

6. Lighting tube life: 5000h

7. Water source and consumption: 8 litres of clean or distilled water per day

[Control system]

1. Adopt the German "Siemens" PLC controller and Taiwan Footwear Color Touch Screen Display.

2. Temperature control adopts P. I. D + S. S. R. The coordinated control of the system with the same channel can improve the stability and service life of the control elements and interfaces.

3. Light, condensation and spraying can be controlled independently or alternately.

4. Input mode: Pt100 sensor

[Sprinkler system]

1. Spraying uniformity regulation: By using the manual control function of the controller, the spraying condition can be observed in the open state, and the spraying head can be adjusted or replaced.

2. Spray state monitoring: the machine is equipped with a spray device, which simulates the sudden change of temperature and rain erosion when it rains. There are several nozzles in total, and the spray is even. Whenever spraying and how long it lasts are freely set by customers.

3. The equipment has its own water filtering device and its pressure pumping device to facilitate the normal use of customers.

[Safety Protection System]

1. Leakage protection

2. Overload Power-off Protection

3. Overtemperature protection

4. Voice Alarm

5. Water shortage and grounding protection

[Equipment use environment]

1. Power supply: AC380 (+10%) V/50HZ three-phase four-wire system

2. Environment: 20-30 degrees Celsius (recommended by ASTMG53), <80% RH, good ventilation, clean indoor environment.
