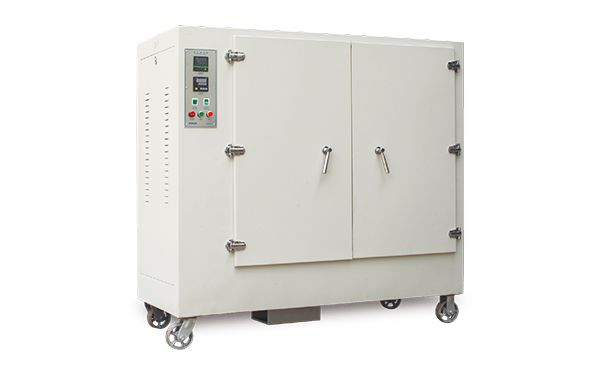

Scope of application: Drying equipment for shrinkage test in knitting, cotton weaving, dyeing, printing and clothing industries.

GB/T8629 、ISO06330。

1. Working room size: 1600 × 600 × 1050mm (L × w × h)

2. Drying method: forced hot air convection

3. Temperature Range: Room Temperature-99.9 C LED Display

4. Temperature Control Accuracy: +1 C

5. Test time: 0-999 min LED display

6. Power supply voltage: AC380V, 4200W

7. Shape size: 2000*820*1530mm (L*W*H)

1. Temperature control is controlled by micro-computer, with self-tuning function of PID, which can effectively prevent temperature overshoot.

2. Equipped with over-temperature protection device, when the temperature in the box exceeds 135 C, the heater power supply is automatically cut off to prevent accidents.

3. The control circuit uses Siemens AC contactor as control unit, which is stable and reliable.

4. The heating pipe is made of 304 stainless steel and is designed to prevent dry burning.

5. High-speed centrifugal fan and thermal relay are used as over-current protection to accelerate sample drying.

6. The inner liner is made of imported galvanized sheet, which is not easy to rust. The sample shelf is made of 304 stainless steel mesh plate.
