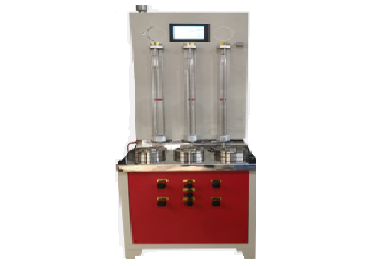

It can be used to test the permeability coefficient of geomembrane under the action of water pressure. It can also be used to test the permeability of nonwoven geotextiles or other materials. The nonwoven composite geotextiles made of polyethylene and polyvinyl chloride are tested under the prescribed water pressure difference. (Pervious stone diameter 65, thickness 10).

SL235-2012

1. Display: 7.0 inch true color touch screen, Chinese menu operation

2. Measurement range: 0-500 kPa accuracy 0.5%

3. Temperature: Room Temperature to 65 degrees Celsius

4. Temperature Accuracy: +0.5 C

5. Test vessel: 80mm

6. Varistor: 0-50 cm_

7. Varying tube accuracy: 0.1 cm

8. Pervious Stone: 80*9mm

9. Number of specimens: 3

10. Gas pressure: 0.7Mpa

11. Shape size: 700 x 550 x 1680 mm (W x D x H)
